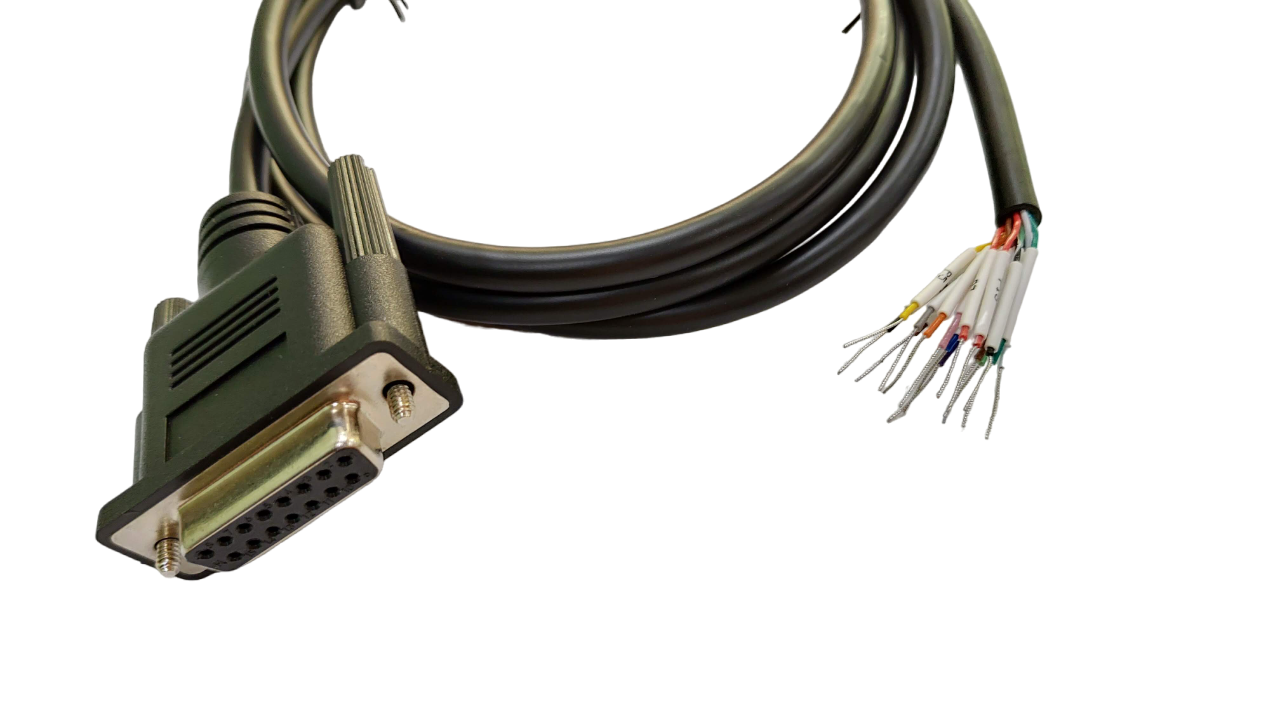

Product Title : Best Industrial Serial DB15 D-Sub 15 Pin Female RS232 Serial Cable with Bare Wire - 28 AWG with Black PVC Jacket (Female, 5/10/25 Feet)

Gender : Female

Features:

• DB15 Serial Female 15 Pin Data Transfer Cable with Wire Ends; Straight Connectors¡XWire Leads Connection Attached with Cable.

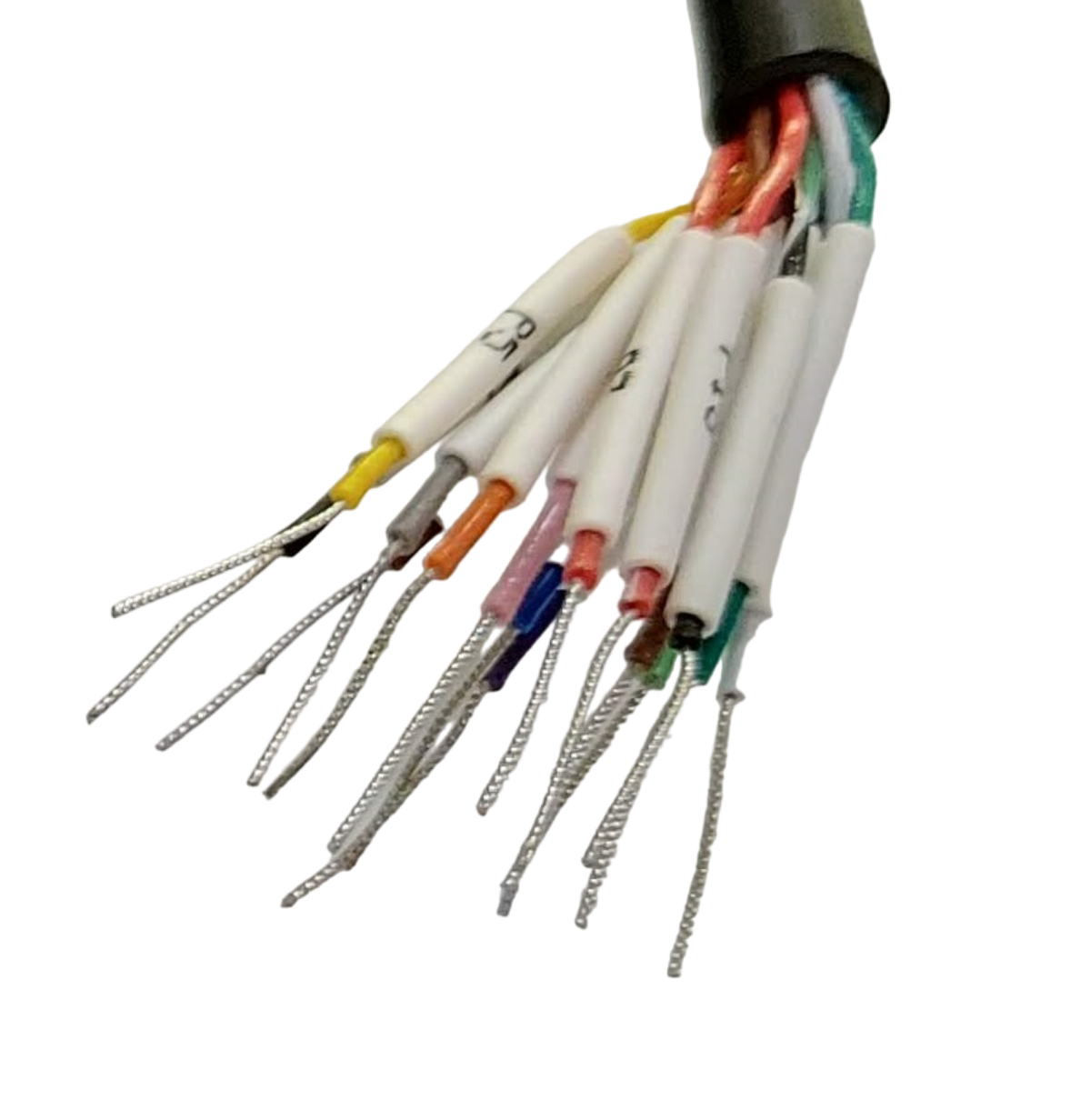

• Tin-Coated Bare Wires End Labeled with Color and Pin Numbers for Convenience of Assembly or Soldering.
• 5, 10 and 25 Feet are Industrial Grade RS232 Adapter Cable with Bare Wire Ends. Connect Legacy DB15 Serial Communications Devices to Board.
• RS-232 level UART Data Signals; Industry Standard to Ensure Maximum Compatibility and Superior Reliability for Industrial Application.

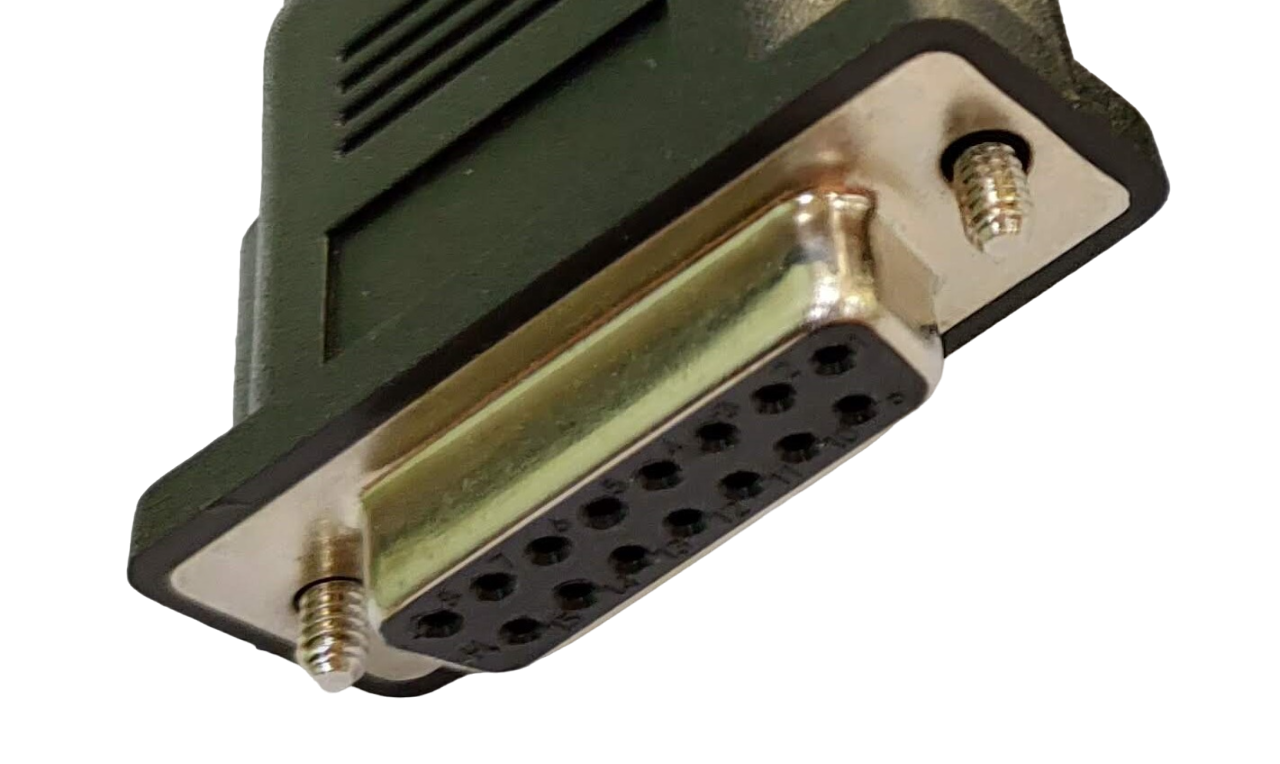

Product Description :?Best RS232 Serial Adapter Cable to Bare Wire End, DB15, Shielded, Molded Socket (Female) with Bare Wire Leads, 5, 10 or 25 Feet Length of Choices; Each Wire Lead is a Separate Color for Easy Identification and They Are Labeled with the Pin that They Are Connected to. Those DB15 Connections are RS-232, so They Transmit Data between Computers and Equipment. The Thumb Screws on These Connectors Have Slots so They Can be Tightened with a Screwdriver in Tight Spaces.

Model Number: DBC 15 Pin RS232 Series

Part Number:?DBC-15FW-05 (DB15 Female 5 Feet)

Part Number:?DBC-15FW-10 (DB15 Female 10 Feet)

Part Number:?DBC-25FW-05 (DB15 Female 25 Feet)

EAN: 0618504184326

Package Dimensions: 8.0 x 7.0 x 0.5 inches
