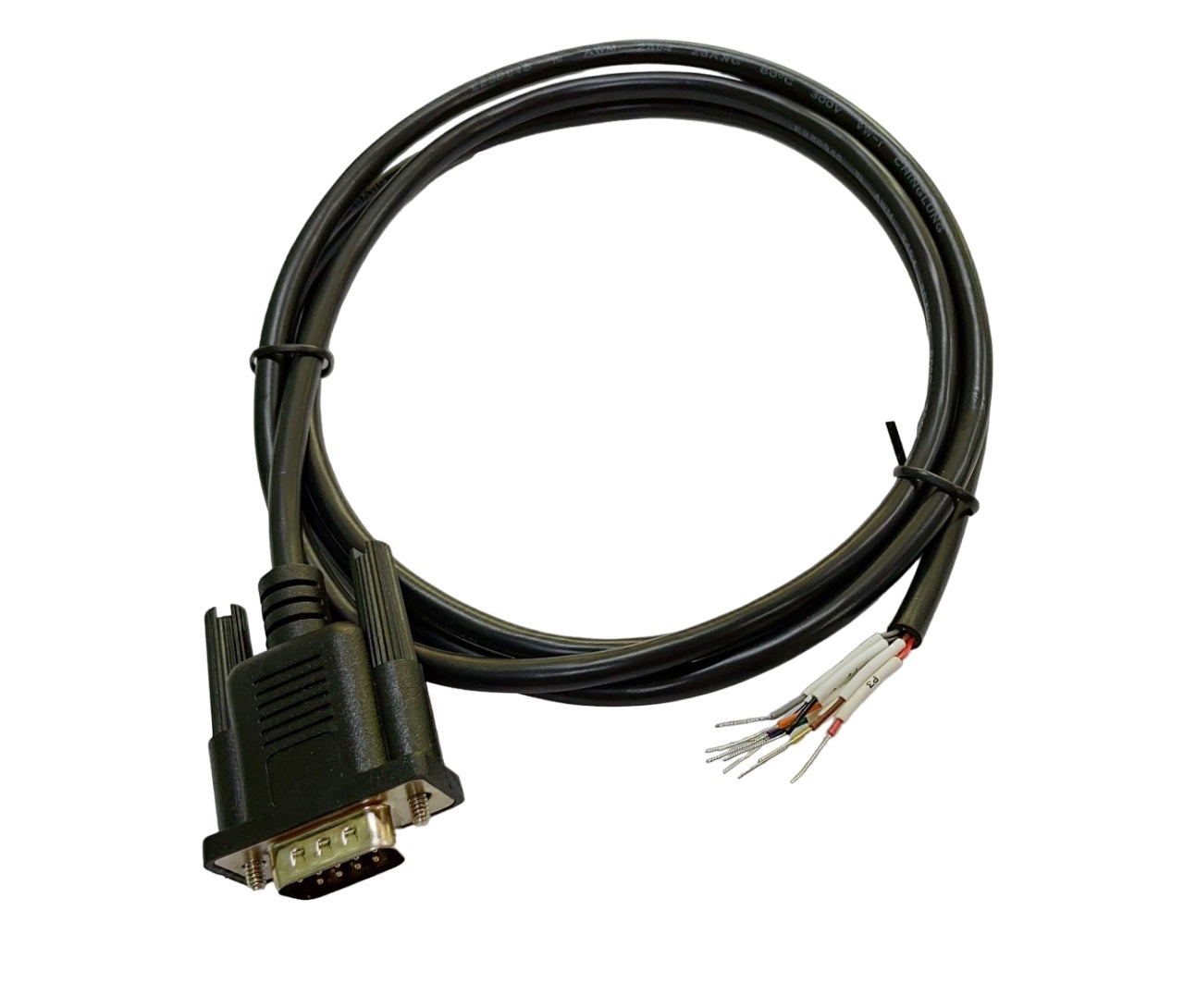

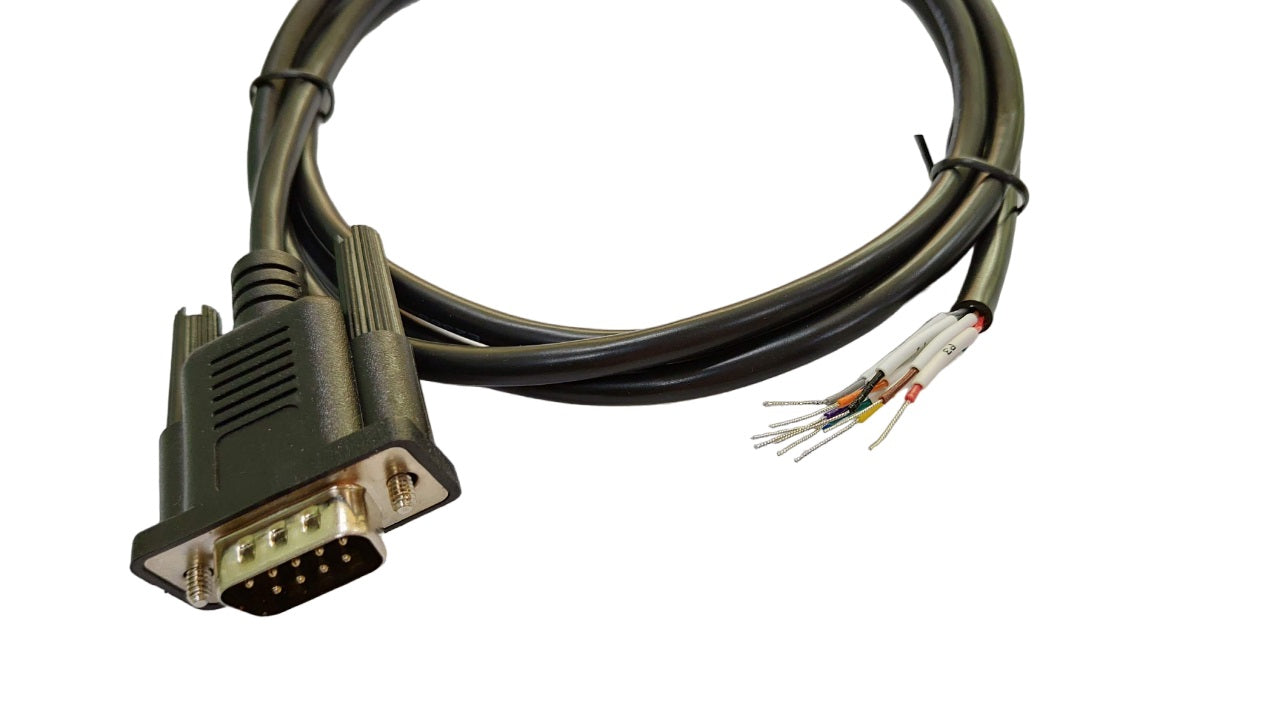

Product Title :?Best Industrial Serial DB9 D-Sub 9 Pin Male RS232 Serial Cable with Bare Wire - 28 AWG with Black PVC Jacket (Male, 3/5/10/15/25/35 Feet)

Gender : Male

Features:

• DB9 Serial Male 9 Pin Data Transfer Cable with Wire Ends; Straight Connectors¡XWire Leads Connection Attached with Cable.

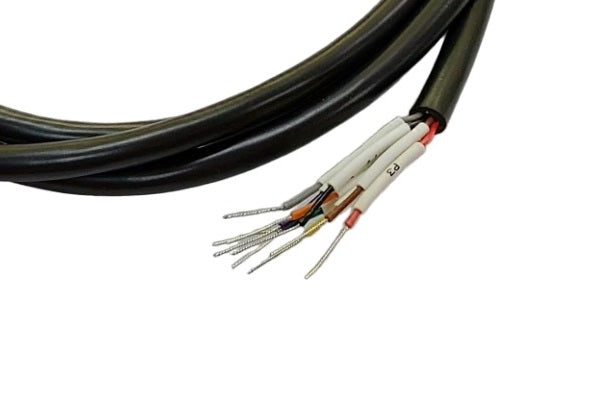

• Tin-Coated Bare Wires End Labeled with Color and Pin Numbers for Convenience of Assembly or Soldering
• 3, 5, 10, 15, 25 and 35 Feet are Industrial Grade RS232 Adapter Cable with Bare Wire Ends. Connect Legacy DB9 Serial Communications Devices to Board
• RS-232 level UART Data Signals; Industry Standard to Ensure Maximum Compatibility and Superior Reliability for Industrial Application.

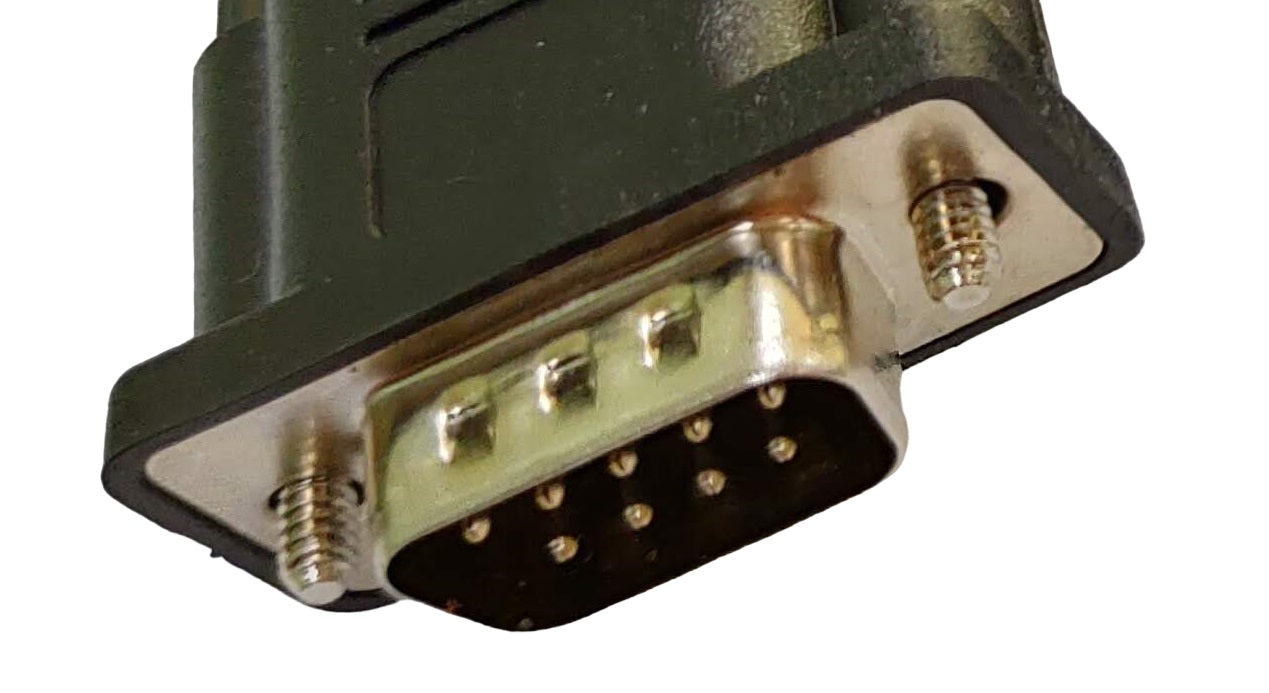

Product Description : Best RS232 Serial Adapter Cable to Bare Wire End, DB9, Shielded, molded Plug (Male) with Bare Wire Leads, 3, 5,10, 15, 25 or 35 Feet Length Choice. Each Bare Wire Lead is a Separate Color for Easy Identification and They are Labeled with the Pin that They are Connected to. Those with DB9 Connections are RS-232, so They Transmit Data between Computers and Equipment. The Thumb Screws on these Connectors have Slots so They Can be Tightened with a Screwdriver in Tight Spaces.

Part Number : DBC-9MW-03 (DB9 Male 3 Feet)

Part Number :?DBC-9MW-05?(DB9 Male 5 Feet)

Part Number :?DBC-9MW-10 (DB9 Male 10 Feet)

Part Number :?DBC-9MW-15 (DB9 Male 15 Feet)

Part Number :?DBC-9MW-25 (DB9 Male 25 Feet)

Part Number :?DBC-9MW-35 (DB9 Male 35 Feet)

Package Dimensions: 8.0 x 7.0 x 0.5 inches
